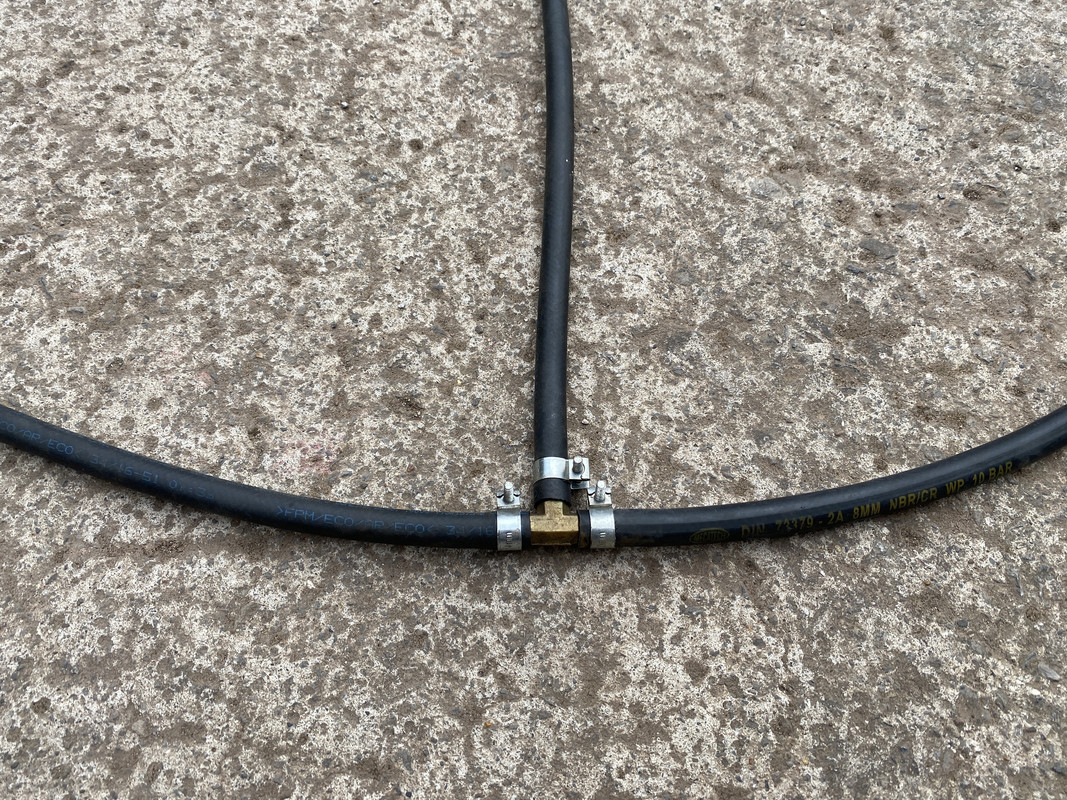

When I changed the fuel pipes in the Type 3 engine bay I thought I would undertake an experiment to see if there was any "real world" difference between Cohline ethanol proof hose and a premium ethanol resistant hose. I used a tee piece and the fuel hose (blue text) to the left hand carb was ethanol proof and the fuel hose (yellow text) to the right hand carb was ethanol resistant. The two pieces of 8mm hose were equal lengths and ran the same route, and the clips were torqued as well.





After 15 months the results are in.....



Nothing to see

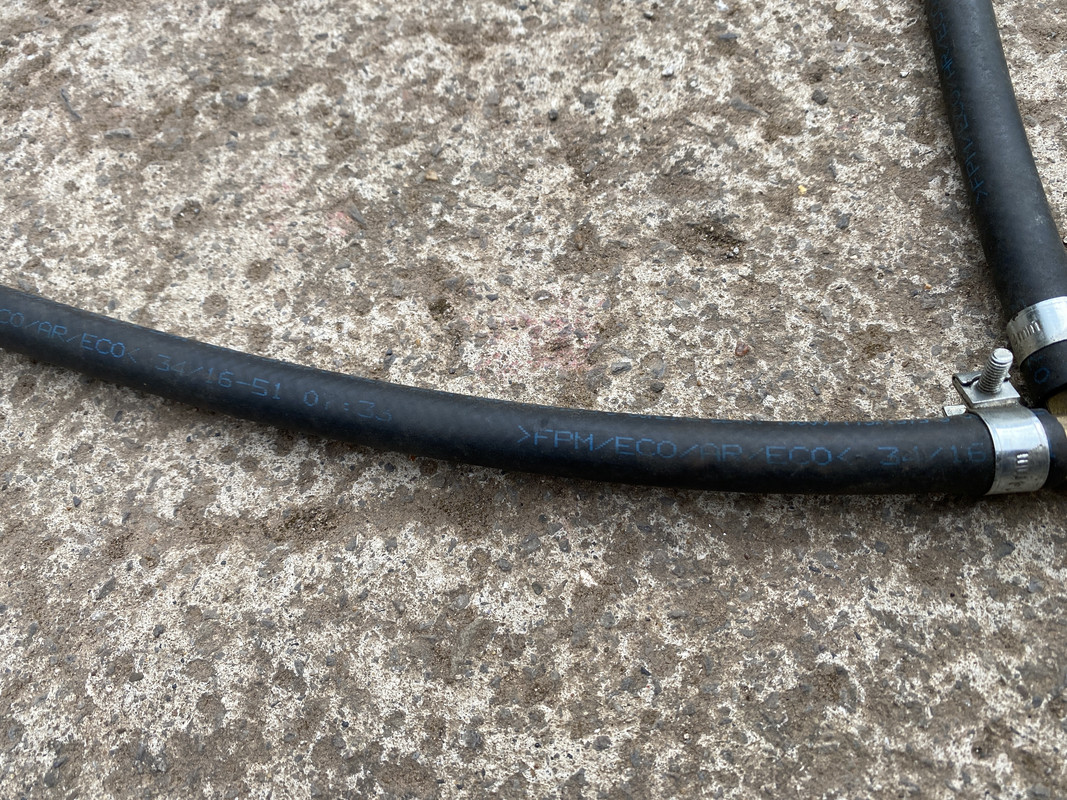

Some small cracks appearing around the hose clamp

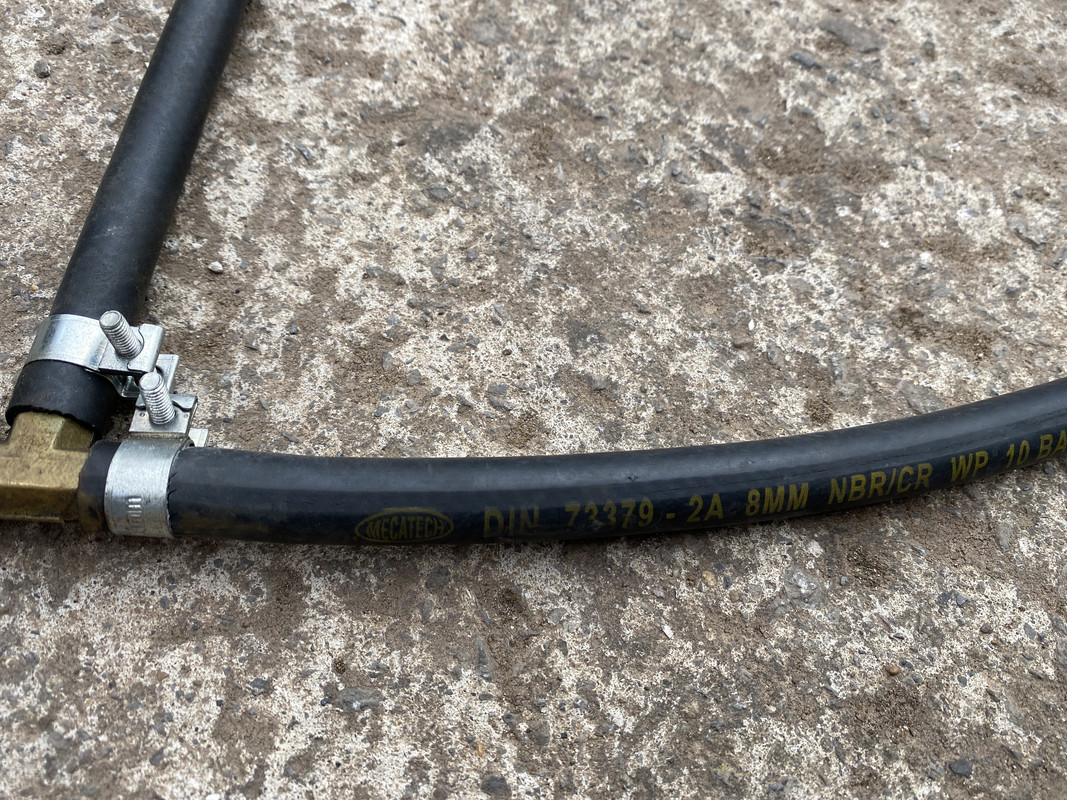

Again, nothing visible on the ethanol proof hose

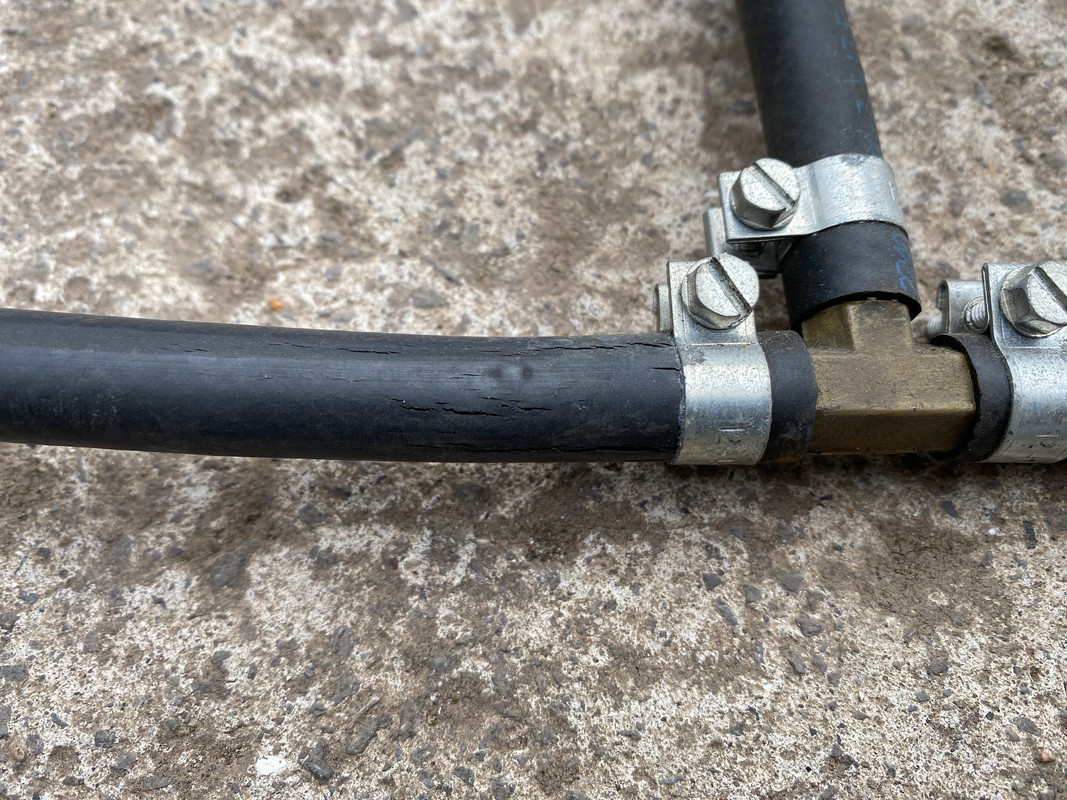

Much larger cracks appearing on the underside of the right hand hose


Bearing in mind that the car hasn't done many miles since the hoses were replaced, you can see that the ethanol resistant hose is anything but.
IMHO the Cohline fuel hose definitely worth the extra cost.

Joined
Oct 26, 2010
Messages
3,247
Reaction score
16
Location
Leeds
Year of Van
1971
Van Type
Panel
That is very interesting!

Thank you for sharing. That'll be the stuff I order when I'm ready to do that in a few months


Moseley

Well-known member
Joined
Sep 15, 2013
Messages
1,471
Reaction score
34
Location
Worcester
Crikey, that is pretty scary after such a short period of time. Worrying that people might be mislead into thinking this is ok to fit and forget.

Out of interest, where was the yellow text hose from - is it marketed as a branded item of some description?

The last hose I purchased was from Advanced Fluid Solutions; I can’t recall the branding on the hose, but from the website the same product appears under the general ethanol proof hoses as it does under the Cohline specific section. I presume it is Cohline hose at around £15 per meter.


Coda

Well-known member
Joined
May 25, 2020
Messages
361
Reaction score
25
Location
Tewkesbury
:cry:
If that's the condition of the exterior that doesn't even directly come into contact with the fuel, I wonder what the interior is like???...
Actually, no I don't wanna know. I'm gonna just buy a Cohline kit.


montypsx

Well-known member
Joined
Jul 7, 2011
Messages
505
Reaction score
0
Location
donny
My cohline pipe is now in its 10th year I still check it twice a year and still not a crack in sight 🤞and I got a new length of pipe that I’ve had for 5 years still in its wrapper ready to replace the old stuff 😂😂😂😂


Darren2030

Well-known member
Supporting Member
Joined
Jan 2, 2018
Messages
85
Reaction score
5
Jesus that’s scary can see how people would be confused when buying fuel lines aswell glad I’ve got the good stuff fitted on me bus cheers for sharing very interesting mate


mike202

Well-known member
Supporting Member
Joined
Sep 3, 2011
Messages
2,210
Reaction score
175
Location
Northumberland
I’ve used that kit before and it was fine. I have since bought the same fuel line, cohline 2240 5.5mm, from advance fluid solutions as I don’t need another kit, just some more fuel line.

I bought it from them directly, as I don’t trust the online market place shops. There’s too much other old fuel line out there which can get passed off as the genuine thing.
